6M/7.5M Cradle Hanging Gondola Lift Suspended Working Platform
Introduction of Rope Suspended Platform
ZLP series electric gondola is a new type of high-altitude
operation equipment that can replace traditional scaffolding,
reduce labor intensity, improve work efficiency, and can be reused.
It has been used in high-rise buildings such as exterior wall
painting, curtain wall installation, maintenance and cleaning.
Widely used in homework. The construction cost is only 30% of the
traditional scaffolding.
●Safe and practical, flexible assembly, easy operation and
performance
●Multiple safety protection measures: automatic anti-tilting,
emergency stop device, speed limit protection, upper limit
protection, manual release, etc.
●The appearance processing methods of the hanging basket structural
parts are hot-dip galvanized, cold-dip galvanized and plastic
sprayed for users to choose
●Unique design and manufacturing process to ensure longer service
life, stable and reliable performance
Parameters of Rope Suspended Platform
| Parameters of ZLP series electric suspended platform |
| ZLP630 | ZLP800 |
| Material & Surface treatment | Hot-dip Galvanized steel , Powder Spraying Steel , Aluminum |
| Rated Load | 630KGS | 800KGS |
| Dimension L*W*G(mm) | (2000*3)*690*1180 | (2500*3)*690*1180 |
| LTD Hoist *2 |
| Hoist Model | LTD63 | LTD80 |
| Motor Type | YEJ90L-4 | YEJ90L-4 |
| Power | 1.5kw | 1.8kw |
| Break Torque | 15N.M | 16N.M |
| Lifting Speed | 9.3±0.5m/min | 8.3±0.5m/min |
| Max Lifting height | 200m | 200m |
| Safety Lock LS30*2 |
| Material | Dacromet shell , Stainless steel lock core |
| Allowable Impact | 30KN | 30KN |
| Angle adjustment | 3°~8° | 3°~8° |
| Electric Control Panel*1 | Galvanized steel / painted shell CHINT/SCHNEIDER components |
| Wire Rope *4 | 8.3mm | 8.6mm/9.1mm |
| Cable*1 | 3*2.0+2*1.0YC-5 |

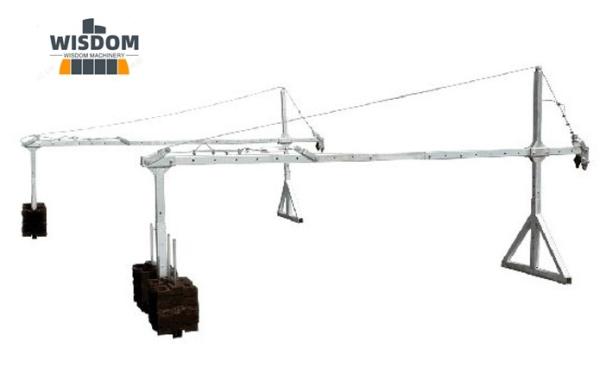

| Suspension Mechanism*2 | Front beam overhang: 1.3-1.5m ; Front beam height:1.1-1.6m |
| Counterweight 25KG/pc | 1000KGS | 1000KGS |
Pictures of Rope Suspended Platform
