3000kg CD MD Wire Rope Hanging Electric Construction Hoist 3ton
Hoisting

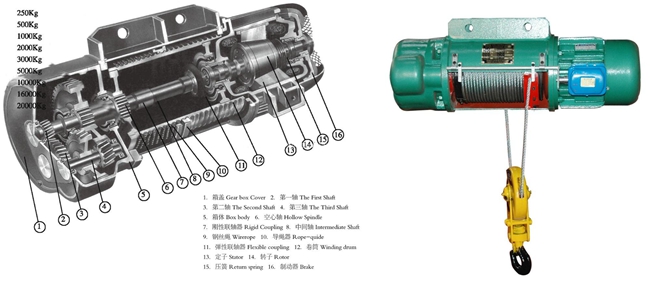

1.CD and MD type wire rope electric hoist descriptions:
(1)It is a kind of light and small lifting equipment, which can be
installed in single beam crane, bridge crane, gantry crane,
cantilever crane, etc. They can meet the requirements of ordinary
occasions.

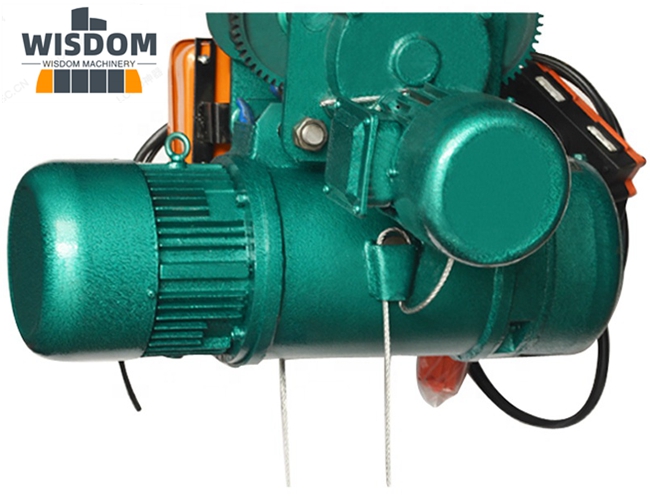

(2)3000kg CD MD Wire Rope Hanging Electric Construction Hoist 3ton
Hoisting Crane Cable Winch have the features of compact, light,
small-size shape and smooth operation. It can be used not only on
the overhead rails, but also be used in conjunction with many types
of electric or manual cranes such as the single-girder crane, the
double girder crane, the cantilever crane and the gantry crane. The
electric hoist model MD1 with double lifting speed should be used
in cases where the hoist model CD1 with single speed cannot meet
the requirements for fine adjusting during precision operations
2. Technical parameters of Electric hoist
| Model | 0.5TON | 1TON | 2TON | 3TON | 5TON | 10TON |
| Capacity ton | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Standard lift m | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
| Lifting Height m/min | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 77/0.7 |
| Running Speed m/min | 20/30 |
| Wire Rope type | 6*37-4.8-180 | 6*37-7.4-180 | 6*37-11-155 | 6*37-13-170 | 6*37-15-200 | 6*37-15-200 |
| I beam track type | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
| Loop track minimum Radius m | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 |
| Voltage V | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency HZ | 50 | 50 | 50 | 50 | 50 | 50 |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 |
3. Advantage of Electric hoist
(1) Type CD1, MD1 a kind of small-lifting equipment
(2) It can be mounted on single beam overhead crane, gantry cranes,
jib crane and so on.
(3)as only one normal speed which can satisfy normal application
(4) It is widely used in factories, mines, harbors, warehouses,
cargo storage area and shops
(5) Essentially in raising working efficiency and improving working
conditions
