Lifting Motor 200kg - 1000kg Miniature Electric Hoist 110v

Product Categories

LANGFANG WISDOM IMPORT & EXPORT CO., LTD.

Contact Now

Ask Lasest Price
Model Number :	PA1000-12M
Price :	43.00usd/piece ~65.00 usd/piece
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	10000 Sets per month
Delivery Time :	10~15 working days, which will be adjusted according to different products and inventory

Add to Cart

Lifting motor Small 200Kg-1000kg Miniature Mini Electric Wire Rope Hoist

PA mini electric hoist:

1. Simple structure, convenient installation, small and exquisite

2. Anti rotation wire rope

3. Powerful motor

4. Single and double hooks are provided, which can handle the lifting of different weights

5. Fast heat dissipation and low energy consumption of motor radiator

6. Strong steel structure house

7. Hoist hook can rotate 360 degrees

Technical parameters of Mini electric hoist :

PA200
Rope type	Rope Length	Lifting speed	Loading weight	Motor power	Net weight	Rope diameter
Single Rope	12m	12m/min	100kg	510w	10kg	3mm
Double Rope	6m	6m/min	200kg	510w	10kg	3mm
PA300
Rope type	Rope Length	Lifting speed	Loading weight	Motor power	Net weight	Rope diameter
Single Rope	12m	12m/min	150kg	600w	11kg	3mm
Double Rope	6m	6m/min	300kg	600w	11kg	3mm
PA400
Rope type	Rope Length	Lifting speed	Loading weight	Motor power	Net weight	Rope diameter
Single Rope	12m	12m/min	200kg	980w	15.8kg	5mm
Double Rope	6m	6m/min	400kg	980w	15.8kg	5mm
PA600
Rope type	Rope Length	Lifting speed	Loading weight	Motor power	Net weight	Rope diameter
Single Rope	12m	12m/min	300kg	1200kw	17kg	5.2mm
Double Rope	6m	6m/min	600kg	1200kw	17kg	5.2mm
PA800
Rope type	Rope Length	Lifting speed	Loading weight	Motor power	Net weight	Rope diameter
Single Rope	12m	12m/min	400kg	1400w	20kg	5.2mm
Double Rope	6m	6m/min	800kg	1400w	20kg	5.2mm
PA1000
Rope type	Rope Length	Lifting speed	Loading weight	Motor power	Net weight	Rope diameter
Single Rope	12m	12m/min	500kg	1700kw	29.4kg	6.2mm
Double Rope	6m	6m/min	1000kg	1700kw	29.4kg	6.2mm

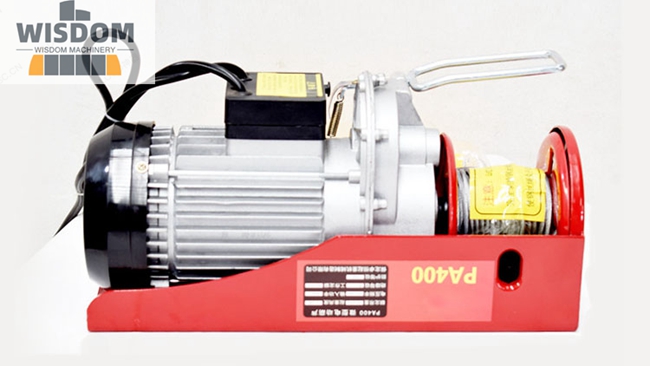

Pictures of Mini electric hoist
