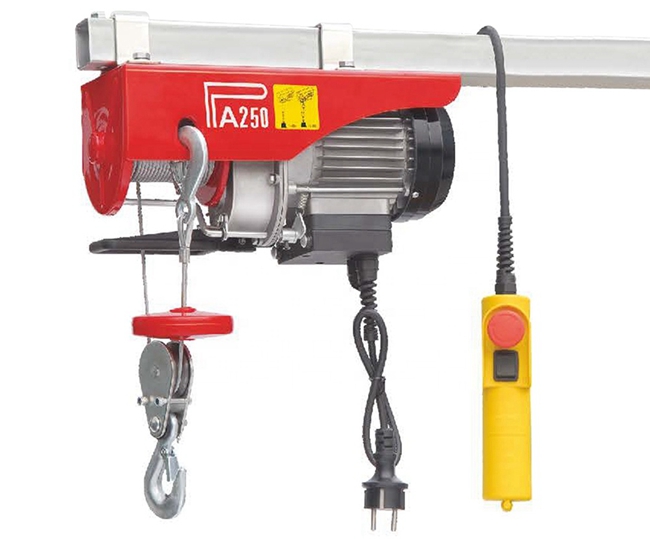

PA250 125/250kg Capacity mini electric wire rope hoist

Application

• Upper and lower limit function

• Anti-reverse winding function

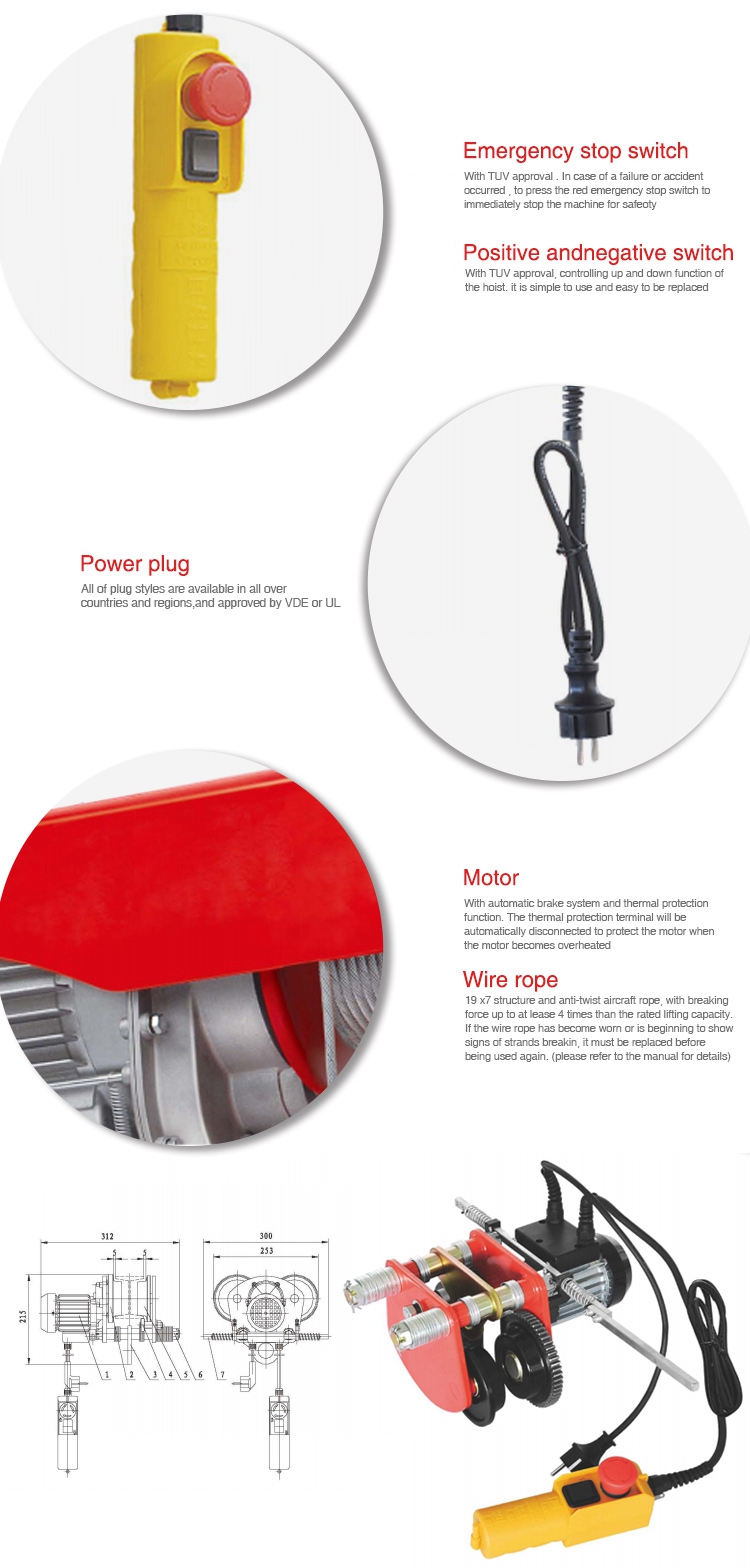

• The emergency stop switch

• Thermal protection terminal

• Protection class IP54

• Insulation class B

• Group of mechanisms M1

Type	PA250D
Work Duty	S3-20%-10min
Rated Volt	220/230V ~ 50Hz
Rated Current	2.2A
Input Power	500W
Lifting Weight	125kg(Single-line), 250kg(Double-line)
Lifting Height	18m(Single-line), 9m(Double-line)
Lifting Speed	8m/min(Single-line), 4 m/min(Double-line)
Diameter of wire rope	3.0mm
Tensile strength of wire rope	>= 1870N/mm2
