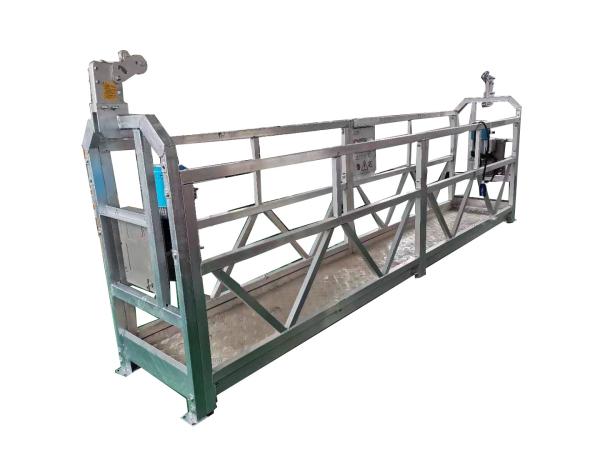

ZLP800 HOT GALVANIZED STEEL SUSPENDED SWING STAGE PLATFORM FOR
PAINTING
Five main structure of Swing stage platform:
(1) Platform
(2) Hoist Assembly
(3) Satety Device
(4) Electric System
(5) Suspension Mechanism
Introduction of Swing stage platform:
1. Max lifting height: 100m;
2. Main models: ZLP500, ZLP630, ZLP800 & ZLP1000;
3. Types: Painted, hot galvanized, aluminum;
4. Voltage: 220v/380V/415V 50/60HZ 3 phass;
5. Couterweight: Cement, cement with steel cover, Iron-casting
counterweight.;
6. H.S Code: 8428909090;
7. Certification: CE & ISO;
8. We can also customize for you.
Technical Parameters of Swing stage :
| Specifications |
| ZLP630 | ZLP800 | ZLP1000 |
| Rated Load | 630kg | 800kg | 1000kg |
| Lifting speed | 9.3m/min | 8.5m/min | 8.3m/min |
| Lifting height | 100m | 100m | 100m |
| Hoist | LTD63 | LTD80 | LTD80sdrive |
| Voltage-3Phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| Power | 1.5kw*2 | 1.8 kw*2 | 2.2kw*2 |
| Safety Lock | LS30 | LS30 | LS30 |
Control Panel | Schneider or CHNT | Schneider or CHNT | Schneider or CHNT |
| Platform Sise (LxWxH) | (2+2+2)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m |
| Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.6mm |
| Cable | (3x2.0+2x1.0mm2)100m | (3x2.0+2x1.0mm2 )100m | (3x2.0+2x1.0mm2)100m |
| Counter Weight | 1000kg | 1000kg | 1000kg |
| Qty of 20" Container | 10 sets | 10 sets | 10 sets |
1. Platform(basket): Hot galvanized steel / Aluminum
2. Suspension mechanism --Hot galvanized steel
3. Safety lock --Anti -proofing
4. Control Panel ---CHINT
5. Motor --LTD63 220V / 380V 415V 50/60HZ 3PHASES
01.Which payment terms can we accept ?
Normally we can accept T/T, L /C, Western Union, sometimes D/P
1.T/T-----30% down payment is required in advance , 70% balance shall be settteled before
shipment or against the copy of original B/L .
2. L/ C----A 100% irrevocable L /C without "soft clause" can be accepted
02.How long will our price be valid ?
1.The rate of Usd dollars-----RMB varies significantly according to
the intemational currency
exchange rates.
2.The cost changed, because of the increasing of labor and material
cost
03.What logistics ways can we work for shipment?
1.Mostly we will go by sea, to all main continents such as South
America, UAE, India etc by
container.
2.For neiberhood countries of China, such as Russia, we can ship
product by train or road.
3.For light spare parts in urgent demand, we can ship them by
international service such as
DHL,TNT, UPS or FEDEX.
