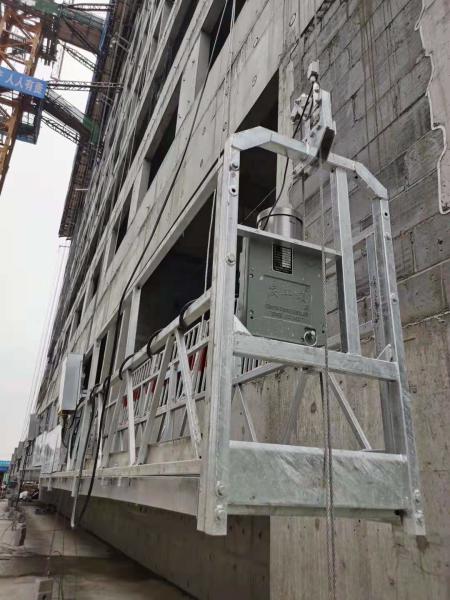

6M 1.5KW ALUMINUM TEMPORARY SAN TREO GONDOLA / ELECTRIC CRADLE /
SUSPENDED SCAFFOLDING
suspended platform is motor driven climbing machinery mainly used
for the exterior wall construction, decoration and renovation of
high-rise buildings and multi-storey buildings. More specifically,
cement coating, wainscoting, curtain wall installing, painting,
varnishing, cleaning, maintenance, and other tasks can all be
completed. It is also suitable for other engineering work on large
tanks, bridges, and dams.
suspended platform alone is capable of accomplishing construction
tasks without the help of scaffolds. Thereby the construction cost
is greatly reduced and the efficiency is improved. In addition,
this suspended platform cradle features reliable performance as
well as easy operation and displacement.
1. Parts contains:
1. Platform(basket): hot galvanized steel / Aluminum
2. Suspension Mechanism: Hot galvanized steel
3. Electric hoists:LTD63
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm
7. Electric cable: 3*2.5+2*1.5
8. Counterweights: Cement & Iron counterweight
9. Spare parts
2. Usage of Suspended platform
(1) Facade maintenance,paiting and cleaning of high building
(2) Window cleaning and installation
(3) Construction inspection and maintenance of big-size
tanks,chimneys ,dams, bridges
(4) Maintenance , cleaning ,painting of big ship
Technical Parameters :
| Specifications |
| Type | ZLP630 | ZLP800 | ZLP1000 |
| 1. Rated Load | 630kg | 800kg | 1000kg |
| 2. Lifting speed | 9.3m/min | 8.5m/min | 8.3m/min |
| 3. Lifting height | 100m | 100m | 100m |
| 4. Hoist | LTD63 | LTD80 | LTD80sdrive |
| 4.1 Voltage-3Phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| 4.2 Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| 4.3 Power | 1.5kw*2 | 2kw*2 | 2.2kw*2 |
| 5. Safety Lock | LS30 | LS30 | LS30 |
6. Electric Control Panel Components | Schneider or CHNT | Schneider or CHNT | Schneider or CHNT |
| 7. Platform Sise (LxWxH) | (2+2+2)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m |
| 8. Steel Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.6mm |
| 9. Special Cable | (3x2.0+2x1.0mm2)100m | (3x2.0+2x1.0mm2 )100m | (3x2.0+2x1.0mm2)100m |
| 10. Counter Weight | 1000kg | 1000kg | 1000kg |
| Qty of 20" Container | 10 sets | 10 sets | 10 sets |
1. Platform(basket): Hot galvanized steel / Aluminum
Features for Aluminum platform:
No need painting or galvanizing on surface;
Oxygen membrane on the surface, rust-proof, anti-corrosion.
Light weight, 65% lighter than the same model of steel one.
Load effiency increased, anti-subversion ability improved.
Easy to install& operate.
Good look, with bright silver gray color
Hot dip galvanized steel platform.
With good outlook;
Anti corrosion.
Lower price than Aluminum platform.
2. Suspension mechanism --Hot galvanized steel
3. Safety lock --Anti -proofing
4. Control Panel ---CHNT
5. Motor --LTD63/LTD80 220V / 380V 415V 50/60HZ 3PHASES
